The XSP is a high-output and contemporary LED street Luminaire. Designed as a totally optimized street and area lighting system, the XSP delivers incredible efficiency without sacrificing application performance. Beyond substantial energy savings and reduced maintenance, it also achieves greater optical control with the NanoOptic® technology for precision delivery. Each luminaire module is designed to mount directly to a 76mm or 60mm tenon or pole and can be tilted +/- 20°, in steps of 5°.

Efficacy:  Up to 150 lm/W

Colour Temperature:  2700K | 3000K | 4000K | 5700K

Power:  67W | 94W

CRI:  70

Controls:  Fixed Output | 1-10V | DALI

Finish:  Black | White| Silver | Bronze

Installation:  Ø60 mm | Ø76 mm – horizontal/vertical supports

Material:  Die-cast aluminium

Degree of Protection:  IP66

Impact Rating:  IK08

Insulation:  Class 1 | Class 2

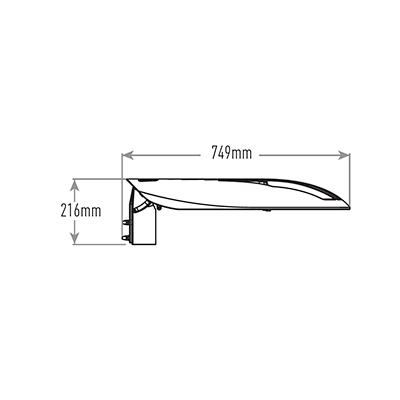

Dimensions:  749 mm x  280 mm x 303 mm

Warranty:  5 Years
